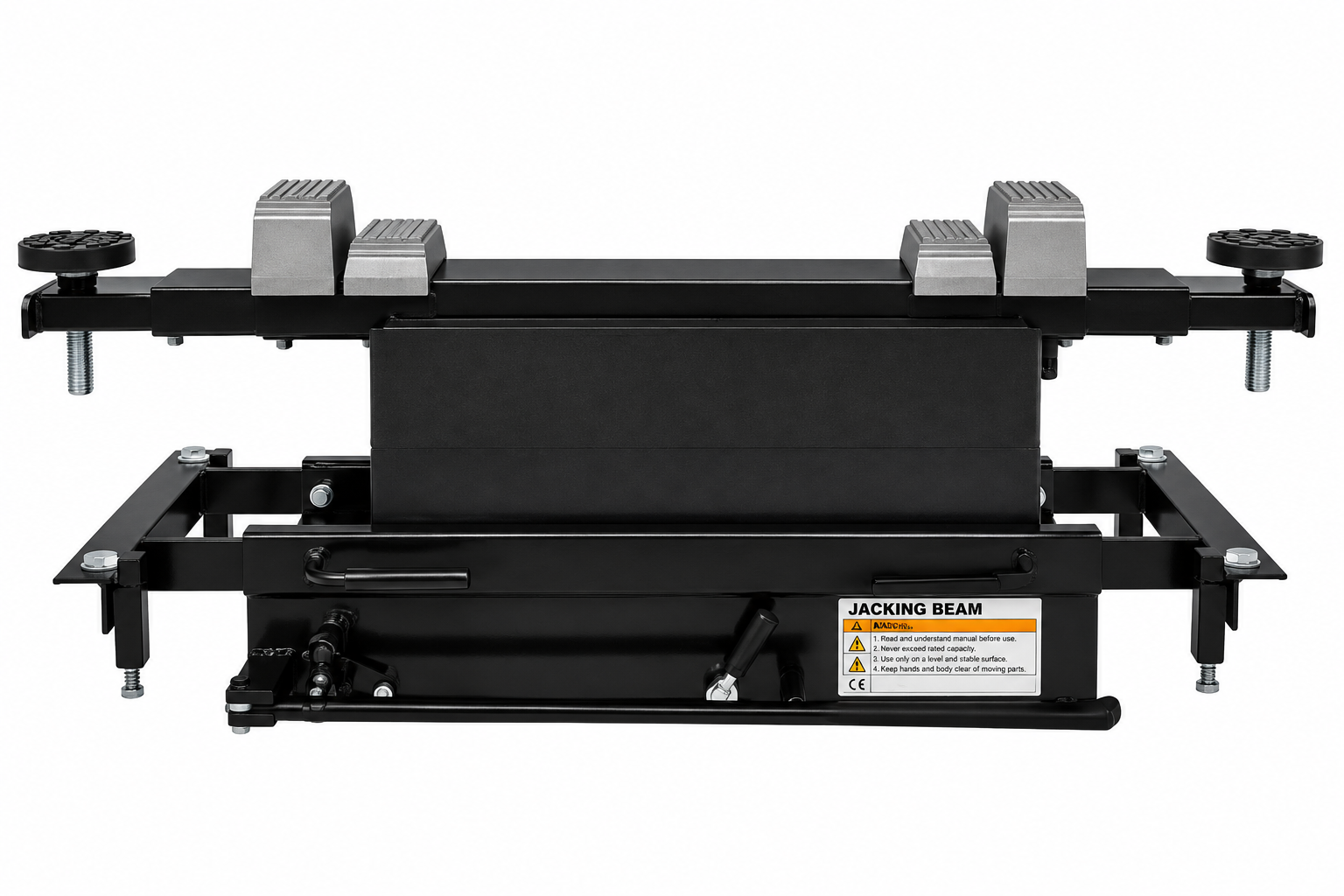

Impact 3000kg Universal Jacking Beam

The Impact 3000JB is a heavy-duty 3000kg universal jacking beam, designed for use with a wide range of vehicle lifts and inspection pits. Its versatile design allows it to be fitted to both flat and raised rails, with both types of mounting brackets supplied as standard.

When used on flat-bed lifts or inspection pits, spring-loaded rollers support the weight of the beam, allowing it to move smoothly and easily into the required position. As the vehicle is raised, the rollers automatically disengage, transferring the load securely onto the supporting plates.

For added operator protection, the Impact 3000JB features a two-stage mechanical safety lock and a telescopic finger guard.

Key Features

• 3000kg lifting capacity
• Two sets of aluminium lifting blocks included
• Two-stage mechanical safety lock
• Telescopic finger guard
• Flat and raised-lip mounting brackets included
• Support arm reach: 780–1075mm
• Beam lift range: 95–300mm
• Load arm reach: 850–1600mm
